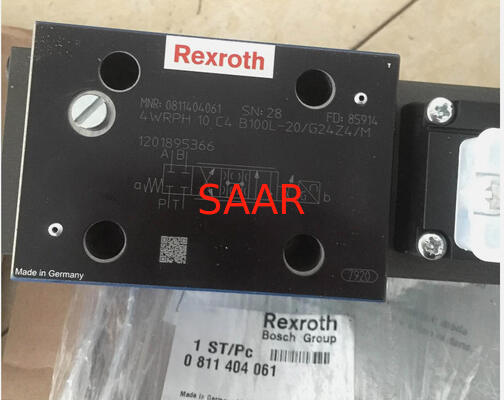

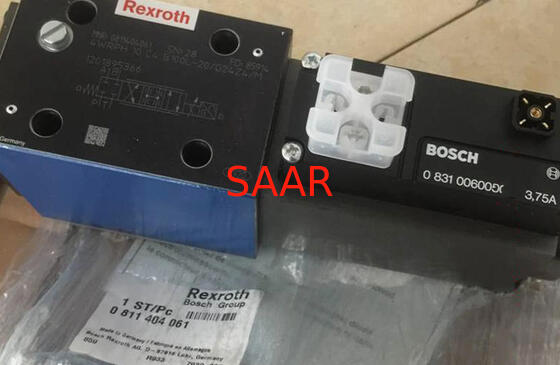

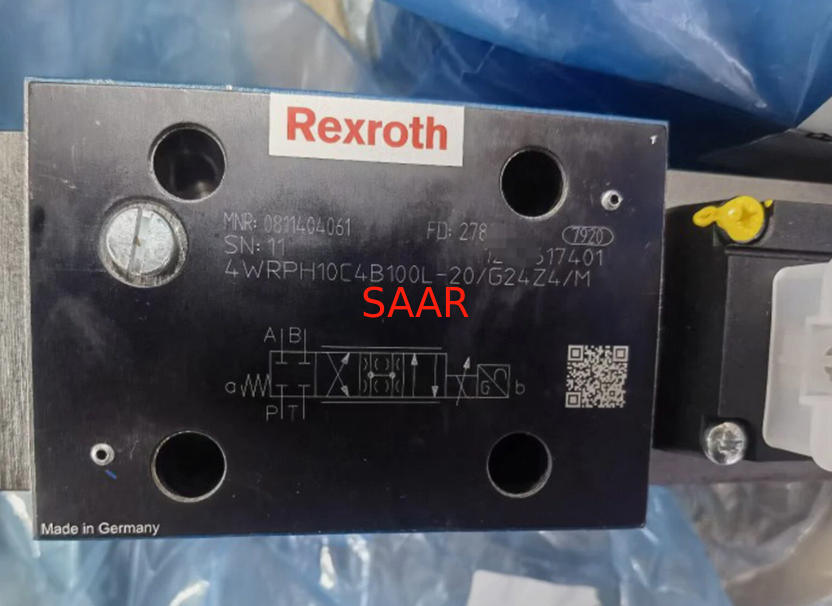

0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE

0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE

  • 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE
  • 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE
  • 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE
0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE
Productdetails:
Plaats van herkomst: Duitsland
Merknaam: Rexroth
Modelnummer: 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: On request
Verpakking Details: Standaarddocument vakje
Levertijd: 7-10 dagen
Betalingscondities: T/T, Western Union
Levering vermogen: 100 stcs per maand
Contact
Gedetailleerde productomschrijving
MNR: 0811404061 Model: 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M
Markeren:

Rexroth proportional directional valve

,

hydraulic proportional valve with warranty

,

4WRPH10 directional control valve

4WRPH6 and 4WRPH10 Series PROPORTIONAL DIRECTIONAL VALVE
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)

4WRPH Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min

4WRPH Size 10
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 50 … 100 l/min
Features
4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems

Type code:

01
02
03
04
05
06
07
08
09

10

11
12

13
14
15
4
WRP
E
H
6/10

B


‒
2X
/
G24
K0
/

M
*

01
4 main ports
4
02
High-response directional valve, direct operated
WRP
03

04
Control spool/sleeve
H
05
Size 10
10
06
Symbols; for the possible version, see "Symbols/Circuit diagrams"

Installation side of the inductive position transducer

07
Valve side B (standard) (see "Symbols/Circuit diagrams")
B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)

08
50 l/min
50

100 l/min
100
Flow characteristic

09
Linear
L
Inflected characteristic curve
P
10
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6
2X
Supply voltage of the control electronics

11
Direct voltage 24 V
G24
Electrical connection

12
Without mating connector; connector DIN 43563-AM6
Mating connectors, separate order
K0
Control electronics interface

13
Command value input ±10 V
A1
Command value input 4 ... 20 mA
F1
Seal material

14
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524
M
15
Further details in the plain text
*


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRPH10 PROPORTIONAL DIRECTIONAL VALVE Model List:

0811404058 4WRPH10C3B50L-2X/G24Z4/M
0811404059 4WRPH10C3B100L-2X/G24Z4/M
0811404077 4WRPH10C5B100L-2X/G24Z4/M
0811404062 4WRPH10C3B50P-2X/G24Z4/M
0811404063 4WRPH10C3B100P-2X/G24Z4/M
0811404079 4WRPH10C5B100P-2X/G24Z4/M
0811404060 4WRPH10C4B50L-2X/G24Z4/M
0811404061 4WRPH10C4B100L-2X/G24Z4/M
0811404076 4WRPH10C1B100L-2X/G24Z4/M
0811404064 4WRPH10C4B50P-2X/G24Z4/M
0811404065 4WRPH10C4B100P-2X/G24Z4/M
0811404067 4WRPH10C1B50P-2X/G24Z4/M
0811404078 4WRPH10C1B100P-2X/G24Z4/M
0811404901 4WRPH10C1B100L-2X/G24K0/M-750
0811404069 4WRPH10C4B100L-2X/G24K0/M-750
0811404076 4WRPH10C1B100L-2X/G24Z4/M
0811404089 4WRPH10C1B100P-2X/G24K0/M-750
0811404078 4WRPH10C1B100P-2X/G24Z4/M
0811404902 4WRPH10C3B100L-2X/G24K0/M-750
0811404059 4WRPH10C3B100L-2X/G24Z4/M
0811404063 4WRPH10C3B100P-2X/G24Z4/M
0811404058 4WRPH10C3B50L-2X/G24Z4/M
0811404062 4WRPH10C3B50P-2X/G24Z4/M
0811404061 4WRPH10C4B100L-2X/G24Z4/M
0811404088 4WRPH10C4B100P-2X/G24K0/M-750
0811404065 4WRPH10C4B100P-2X/G24Z4/M
0811404060 4WRPH10C4B50L-2X/G24Z4/M
