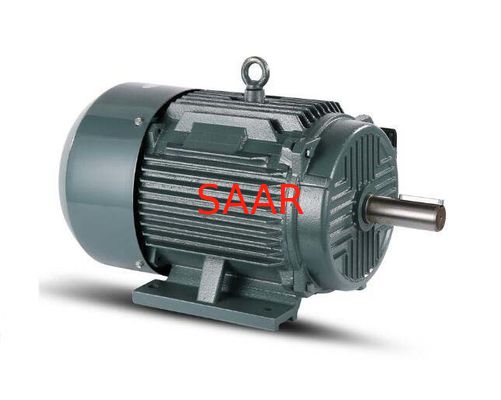

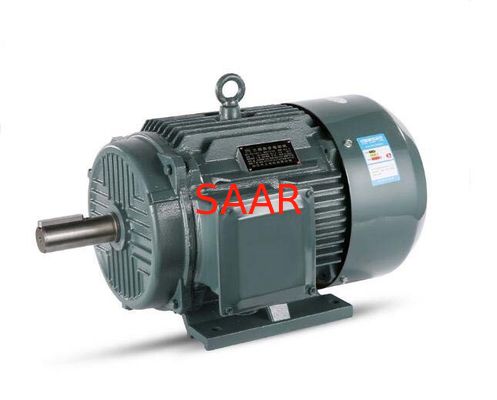

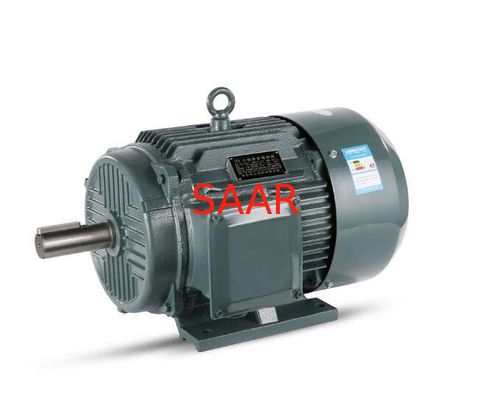

YE2 reeks inductiemotoren in drie stadia
Norm: CEI
Efficiencyniveau: IE2
Kadergrootte: 80~355 gietijzerkader
Outputwaaier: 0.75~375KW
Beschermingsklasse: IP55
Toepassing: De compressor van de ventilatorpomp etc.
De asynchrone motor in drie stadia van de YE2-reeks stemt met de derde efficiencynorm overeen in de bepalingen van GB 18613-2012 de „energierendementgrens en de energierendementclassifiSAARie van kleine en middelgrote in drie stadia
asynchrone motoren „. En de verbetering van de efficiency in zijn ontwerp stemt met de eisen van de staat op de energie overeen - besparing en consumptie het verminderen van de verwerkende sector.
YE2 de reeksmotoren met de opzettende afmeting overeenkomstig standaardiec60034, het heeft goede eigenschappen zoals optimale structuur, aantrekkelijke verschijning, met geringe geluidssterkte, hoog rendement, hoge beschermingsklasse evenals hoge isolatieklasse. YE2 de reeksmotoren kunnen wijd in diverse soorten algemeen gebruiksmechanisme zoals ventilators, pompen, machin hulpmiddelen, compressoren, vervoer etc. worden gebruikt, en kunnen ook op de gevaarlijke gebieden met olie worden gebruikt en chemisch, staalfabrieken, mijnbouw.
Technische Beschrijving
| Motortype | Geschatte Macht | Huidig | Geschatte Snelheid | Geschatte Torsie | Machtsfactor | Efficiency | Gesloten Stroom | Gesloten Torsie | Maximumkoppel | Gewicht | ||
| Geschatte Stroom | Geschatte Torsie | Geschatte Torsie | ||||||||||
| KW | HP | 380V InA | 400V IoA | r/min | N.m | cosΦ | η% | Ist/IN | Tst/TN | TM/TN | kg | |
| Ye2-80m1-2 | 0,75 | 1 | 1.8 | 1.7 | 2845 | 2.4 | 0,82 | 77.4 | 6.8 | 2.3 | 2.3 | 15 |
| Ye2-80m2-2 | 1.1 | 1.5 | 2.5 | 2.4 | 2840 | 3.5 | 0,83 | 79.6 | 7.1 | 2.3 | 2.3 | 16 |
| Ye2-jaren '90-2 | 1.5 | 2 | 3.3 | 3.2 | 2840 | 4.8 | 0,84 | 81.3 | 7.3 | 2.3 | 2.3 | 22 |
| Ye2-90l-2 | 2.2 | 3 | 4.7 | 4.5 | 2840 | 7 | 0,85 | 83.2 | 7.6 | 2.3 | 2.3 | 25 |
| Ye2-100l-2 | 3 | 4 | 6.2 | 5.9 | 2860 | 9.5 | 0,87 | 84.6 | 7.8 | 2.2 | 2.3 | 33 |
| Ye2-112m-2 | 4 | 5.5 | 8 | 7.6 | 2890 | 12.7 | 0,88 | 85.8 | 8.1 | 2.2 | 2.3 | 40 |
| Ye2-132s1-2 | 5.5 | 7.5 | 10.9 | 10.4 | 2910 | 17.5 | 0,88 | 87 | 8.2 | 2.2 | 2.3 | 59 |
| Ye2-132s2-2 | 7.5 | 10 | 14.5 | 13.8 | 2905 | 23.9 | 0,89 | 88.1 | 7.8 | 2.2 | 2.3 | 62 |
| Ye2-160m1-2 | 11 | 15 | 21 | 20 | 2935 | 35 | 0,89 | 89.4 | 7.9 | 2.2 | 2.3 | 107 |
| Ye2-160m2-2 | 15 | 20 | 28.4 | 26.9 | 2935 | 47.7 | 0,89 | 90.3 | 7.9 | 2.2 | 2.3 | 117 |
| Ye2-160l-2 | 18.5 | 25 | 34.7 | 33 | 2935 | 58.9 | 0,89 | 90.9 | 8 | 2.2 | 2.3 | 134 |
| Ye2-180m-2 | 22 | 30 | 41.1 | 39.1 | 2940 | 70 | 0,89 | 91.3 | 8.1 | 2.2 | 2.3 | 169 |
| Ye2-200l1-2 | 30 | 40 | 55.7 | 52.9 | 2945 | 95.5 | 0,89 | 92 | 7.5 | 2 | 2.3 | 220 |
| Ye2-200l2-2 | 37 | 50 | 68.3 | 64.9 | 2945 | 117.8 | 0,89 | 92.5 | 7.5 | 2 | 2.3 | 239 |
| Ye2-225m-2 | 45 | 60 | 83 | 79 | 2950 | 143.2 | 0,89 | 92.9 | 7.5 | 2.2 | 2.3 | 297 |
| Ye2-250m-2 | 55 | 75 | 101 | 96 | 2965 | 175.1 | 0,89 | 93.2 | 7.6 | 2.2 | 2.3 | 380 |
| Ye2-280s-2 | 75 | 100 | 137 | 130 | 2965 | 238.7 | 0,89 | 93.8 | 6.9 | 1.8 | 2.3 | 510 |
| Ye2-280m-2 | 90 | 125 | 163 | 155 | 2965 | 286.5 | 0,89 | 94.1 | 6.9 | 1.8 | 2.3 | 540 |
| Ye2-315s-2 | 110 | 150 | 197 | 187 | 2975 | 350.1 | 0,9 | 94.3 | 7 | 1.8 | 2.2 | 920 |
| Ye2-315m-2 | 132 | 180 | 236 | 224 | 2975 | 420.2 | 0,9 | 94.6 | 7 | 1.8 | 2.2 | 970 |
| Ye2-315l1-2 | 160 | 215 | 282 | 268 | 2975 | 509.3 | 0,91 | 94.8 | 7.1 | 1.8 | 2.2 | 1080 |
| Ye2-315l2-2 | 200 | 270 | 352 | 334 | 2975 | 636.6 | 0,91 | 95 | 7.1 | 1.8 | 2.2 | 1170 |
| Ye2-355m-2 | 250 | 340 | 439 | 417 | 2970 | 795.8 | 0,91 | 95 | 7.1 | 1.6 | 2.2 | 1690 |
| Ye2-355l-2 | 315 | 420 | 554 | 526 | 2970 | 1002.6 | 0,91 | 95 | 7.2 | 1.6 | 2.2 | 1860 |
| Ye2-355x1-2 | 355 | 475 | 624 | 593 | 2975 | 1130 | 0,91 | 95 | 7.2 | 1.6 | 2.2 | 1920 |
| Ye2-355x2-2 | 375 | 500 | 659 | 626 | 2975 | 1193.6 | 0,91 | 95 | 7.2 | 1.6 | 2.2 | 1960 |
| Ye2-80m2-4 | 0,75 | 1 | 2 | 2 | 1380 | 4.8 | 0,76 | 79.6 | 6.4 | 2.3 | 2.3 | 16 |
| Ye2-jaren '90-4 | 1.1 | 1.5 | 3 | 3 | 1390 | 7 | 0,77 | 81.4 | 6.6 | 2.3 | 2.3 | 22 |
| Ye2-90l-4 | 1.5 | 2 | 4 | 3 | 1390 | 9.5 | 0,78 | 82.8 | 6.7 | 2.3 | 2.3 | 27 |
| Ye2-100l1-4 | 2.2 | 3 | 5 | 5 | 1410 | 14 | 0,8 | 84.3 | 7.3 | 2.3 | 2.3 | 34 |
| Ye2-100l2-4 | 3 | 4 | 7 | 6 | 1410 | 19.1 | 0,81 | 85.5 | 7.5 | 2.3 | 2.3 | 35 |
| Ye2-112m-4 | 4 | 5.5 | 9 | 8 | 1440 | 25.5 | 0,81 | 86.6 | 7.5 | 2.3 | 2.3 | 44 |
| Ye2-132s-4 | 5.5 | 7.5 | 12 | 11 | 1445 | 35 | 0,82 | 87.7 | 7.5 | 2 | 2.3 | 61 |
| Ye2-132m-4 | 7.5 | 10 | 15 | 15 | 1445 | 47.7 | 0,83 | 88.7 | 7.3 | 2 | 2.3 | 73 |
| Ye2-160m-4 | 11 | 15 | 22 | 21 | 1460 | 70 | 0,83 | 89.8 | 7.4 | 2 | 2.3 | 113 |
| Ye2-160l-4 | 15 | 20 | 30 | 28 | 1460 | 95.5 | 0,84 | 90.6 | 7.5 | 2 | 2.3 | 133 |
| Ye2-180m-4 | 18.5 | 25 | 36 | 34 | 1470 | 117.8 | 0,85 | 91.2 | 7.6 | 2 | 2.3 | 167 |
| Ye2-180l-4 | 22 | 30 | 43 | 41 | 1470 | 140.1 | 0,85 | 91.6 | 7.7 | 2.1 | 2.3 | 181 |
| Ye2-200l-4 | 30 | 40 | 58 | 55 | 1470 | 191 | 0,85 | 92.3 | 7.1 | 2.1 | 2.3 | 232 |
| Ye2-225s-4 | 37 | 50 | 71 | 67 | 1475 | 235.5 | 0,86 | 92.7 | 7.3 | 2.1 | 2.3 | 287 |
| Ye2-225m-4 | 45 | 60 | 85 | 81 | 1475 | 286.5 | 0,86 | 93.1 | 7.3 | 2.2 | 2.3 | 322 |
| Ye2-250m-4 | 55 | 75 | 104 | 99 | 1475 | 350.1 | 0,86 | 93.5 | 7.3 | 2.2 | 2.3 | 385 |
| Ye2-280s-4 | 75 | 100 | 139 | 132 | 1485 | 477.5 | 0,87 | 94 | 6.8 | 2.2 | 2.3 | 510 |
| Ye2-280m-4 | 90 | 125 | 165 | 157 | 1485 | 572.9 | 0,88 | 94.2 | 6.9 | 2.2 | 2.3 | 600 |
| Ye2-315s-4 | 110 | 150 | 199 | 189 | 1485 | 700.3 | 0,89 | 94.5 | 6.9 | 2.1 | 2.2 | 930 |
| Ye2-315m-4 | 132 | 180 | 238 | 226 | 1485 | 840.3 | 0,89 | 94.7 | 6.9 | 2.1 | 2.2 | 1010 |
| Ye2-315l1-4 | 160 | 215 | 285 | 270 | 1485 | 1018.6 | 0,9 | 94.9 | 6.9 | 2.1 | 2.2 | 1070 |
| Ye2-315l2-4 | 200 | 270 | 355 | 337 | 1485 | 1273.2 | 0,9 | 95.1 | 6.9 | 2.1 | 2.2 | 1170 |
| Ye2-355m-4 | 250 | 340 | 444 | 422 | 1490 | 1591.5 | 0,9 | 95.1 | 6.9 | 2 | 2.2 | 1720 |
| Ye2-355l-4 | 315 | 420 | 559 | 531 | 1490 | 2005.3 | 0,9 | 95.1 | 6.9 | 2 | 2.2 | 1870 |
| Ye2-355x1-4 | 355 | 475 | 637 | 605 | 1490 | 2259.9 | 0,89 | 95.1 | 6.5 | 1.7 | 2.2 | 1930 |
| Ye2-355x2-4 | 375 | 500 | 681 | 647 | 1490 | 2387.3 | 0,88 | 95.1 | 6.5 | 1.7 | 2.2 | 1960 |
| Ye2-jaren '90-6 | 0,75 | 1 | 2 | 2 | 915 | 7.2 | 0,71 | 75.9 | 5.8 | 2 | 2.1 | 23 |
| Ye2-90l-6 | 1.1 | 1.5 | 3 | 3 | 915 | 10.5 | 0,72 | 78.1 | 5.9 | 2 | 2.1 | 28.5 |
| Ye2-100l-6 | 1.5 | 2 | 4 | 4 | 920 | 14.3 | 0,72 | 79.8 | 5.9 | 2 | 2.1 | 37.5 |
| Ye2-112m-6 | 2.2 | 3 | 6 | 5 | 940 | 21 | 0,72 | 81.8 | 6.2 | 2 | 2.1 | 48 |
| Ye2-132s-6 | 3 | 4 | 8 | 7 | 960 | 28.6 | 0,72 | 83.3 | 6.4 | 2 | 2.1 | 65 |
| Ye2-132m1-6 | 4 | 5.5 | 10 | 9 | 960 | 38.2 | 0,74 | 84.6 | 6.6 | 2 | 2.1 | 73 |
| Ye2-132m2-6 | 5.5 | 7.5 | 13 | 12 | 960 | 52.5 | 0,75 | 86 | 6.8 | 2 | 2.1 | 82 |
| Ye2-160m-6 | 7.5 | 10 | 17 | 16 | 970 | 71.6 | 0,78 | 87.2 | 6.8 | 2 | 2.1 | 113 |
| Ye2-160l-6 | 11 | 15 | 24 | 23 | 970 | 105 | 0,79 | 88.7 | 6.9 | 2 | 2.1 | 134 |
| Ye2-180l-6 | 15 | 20 | 31 | 29 | 970 | 143.2 | 0,82 | 89.7 | 7.3 | 2 | 2.1 | 178 |
| Ye2-200l1-6 | 18.5 | 25 | 39 | 37 | 975 | 176.7 | 0,8 | 90.4 | 7.2 | 2 | 2.1 | 226 |
| Ye2-200l2-6 | 22 | 30 | 45 | 43 | 975 | 210.1 | 0,81 | 90.9 | 7.3 | 2 | 2.1 | 243 |
| Ye2-225m-6 | 30 | 40 | 61 | 58 | 980 | 286.5 | 0,82 | 91.7 | 6.8 | 2 | 2.1 | 294 |
| Ye2-250m-6 | 37 | 50 | 73 | 70 | 980 | 353.3 | 0,83 | 92.2 | 7 | 2 | 2.1 | 369 |
| Ye2-280s-6 | 45 | 60 | 87 | 82 | 980 | 429.7 | 0,85 | 92.7 | 7.2 | 2 | 2 | 513 |
| Ye2-280m-6 | 55 | 75 | 104 | 99 | 980 | 525.2 | 0,86 | 93.1 | 7.2 | 2 | 2 | 661 |
| Ye2-315s-6 | 75 | 100 | 145 | 138 | 985 | 716.2 | 0,84 | 93.7 | 6.5 | 2 | 2 | 910 |
| Ye2-315m-6 | 90 | 125 | 171 | 163 | 985 | 859.4 | 0,85 | 94 | 6.6 | 2 | 2 | 970 |
| Ye2-315l1-6 | 110 | 150 | 209 | 198 | 985 | 1050.4 | 0,85 | 94.3 | 6.6 | 2 | 2 | 1155 |
| Ye2-315l2-6 | 132 | 180 | 247 | 234 | 985 | 1260.5 | 0,86 | 94.6 | 6.6 | 2 | 2 | 1260 |
| Ye2-355m1-6 | 160 | 215 | 298 | 283 | 990 | 1527.8 | 0,86 | 94.8 | 6.7 | 2 | 2 | 1638 |
| Ye2-355m2-6 | 200 | 270 | 372 | 353 | 990 | 1909.8 | 0,86 | 95 | 6.8 | 2 | 2 | 1788 |
| Ye2-355l-6 | 250 | 340 | 465 | 442 | 990 | 2387.3 | 0,86 | 95 | 6.8 | 2 | 2 | 1931 |
| Ye2-355x1-6 | 315 | 420 | 586 | 557 | 990 | 3007.9 | 0,86 | 95 | 6.8 | 2 | 2 | 1960 |
